Description
LCD
METER PANEL
Negative LCD meter panel features easy to read multi-function display with a range of information.
INVERTED
FRONT FPRK
High Quality inverted front forks with cast aluminium upper triple clamp gives excellent agility and quick cornering response.
A&S CLUTCH FOR LIGHTER
LEVER PULL AND STRESS-FREE GEAR SHIFTS
An A&S (assist and slipper) clutch adopted to reduce the weight of the clutch pull and provide low-stress shifting during deceleration. The lighter clutch pull weight helps to reduce rider fatigue. This also prevents excessive engine braking, this reducing the effects on chassis behavior. This A&S clutch makes for quick, smooth downshifts.

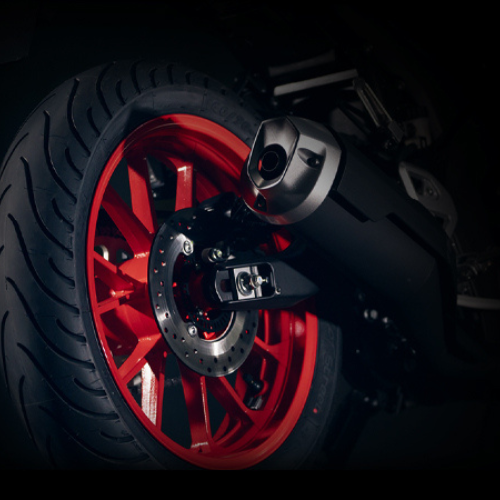

140mm
REAR TYRE
Mounted with wide 140mm rear tyres for excellent grip and sure road holding

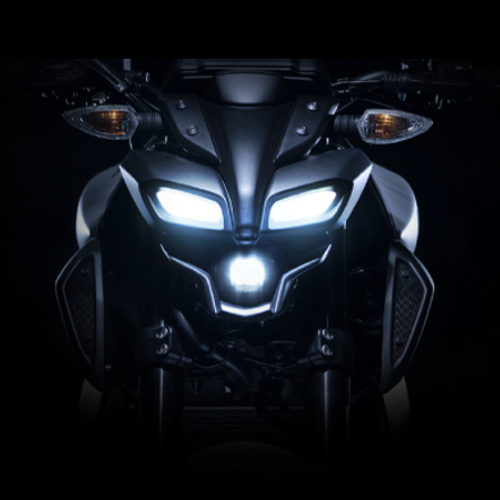

TWIN EYED POSITION
& LED EADLIGHT
Twin eyed Position and LED Headlight. Aggressive twin LED position lights gives an intimidating MT look, the compact central mounted LED headlight brightens every night ride.
6 SPEED
GEAR BOX
With an optimized secondary reduction gear ratio, the 6 speed gear box delivers a smooth ride.

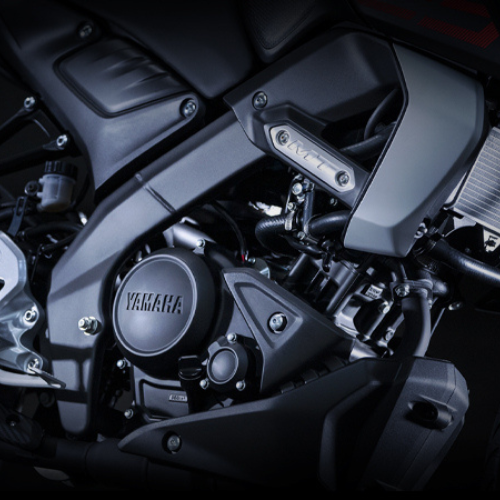

TORQUE FRIENDLY CCELERATION
VVA ENGINE

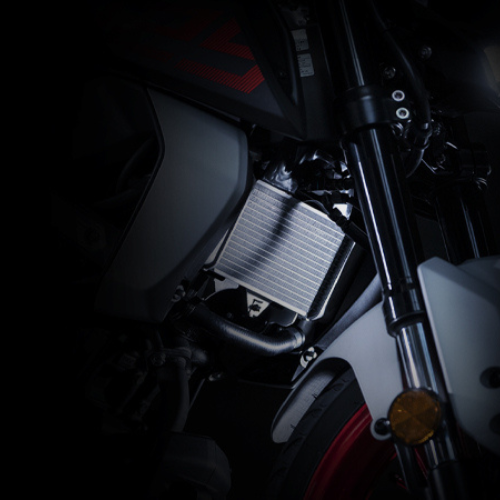

155cc liquid-cooled, SOHC, 4-valve, fuel-injected engine with high-performance VVA system integrating specific ECU with optimized FI settings produces high torque acceleration.

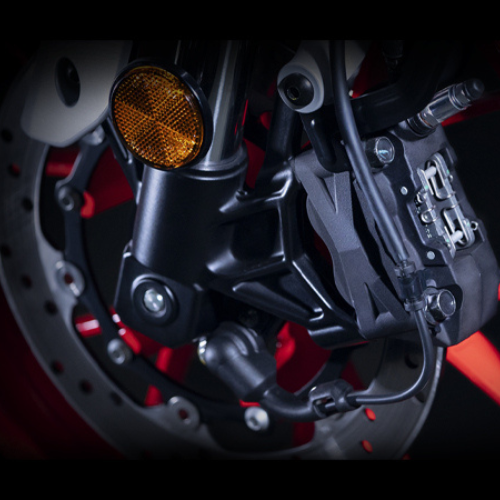

LARGE 282mm
FRONT DISC
A 2 pot calliper paired with large 282mm front disc gives accurate and strong braking power.
SPECIFICATIONS
Engine
Displacement : 155 cc
Maximum Power : 19 hp
Fuel Tank Capacity (litres) : 10 L
Cooling System : Liquid Cooled
No. Of Cylinder : 1
Maximum Torque : 14.7 Nm
No. Of Strokes : 4-Stroke
Valve Configuration : DOHC
Bore X Stroke : 58.0 mm x 58.7 mm
Compression Ratio : 11.6:1
Valves Per Cylinder : 4
Clutch Type : Wet, Multi-Plate
Drive Type : Chain Drive
Engine Type : Single Cylinder, 4-Stroke, 4-Valve , Liquid-Cooled, DOHC
Lubrication System : Wet Sump
Exhaust Pipes : Single Exhaust
RPM at Maximum Torque : 8500 rpm
RPM at Maximum Power : 10000 rpm
Transmission
Transmission Type : Manual
Gear Box : 6-Speed
Chassis
Suspension Front : Telescopic fork
Suspension Rear : Swing arm
Tire Size Front : 110/70 R17
Tire Size Rear : 140/70 R17
Tyre Type : Radial, Tubeless
Dimensions
Category : Sport
Height : 1065 mm
Seating Capacity : 2
Length : 1965 mm
Oil Tank Capacity : 1.05 L
Seat Height : 810 mm
Kerb Weight : 133 kg
Width : 800 mm
Wheel Base : 1335mm
